Vue Dynamic Hex Color Chart

Vue Dynamic Hex Color Chart

This Vue.js application generates a dynamic grid of hex color swatches, displaying a range of colors from dark to light across rows and columns. By stepping through RGB values programmatically, it creates a visual color chart useful for designers, developers, or anyone selecting colors. The app leverages Vue’s reactivity and templating to render the table efficiently, with each cell showing its hex code on a contrasting background. This example demonstrates how Vue can build simple, interactive widgets for tasks like color picking, data visualization, or utility tools without complex setups.

Project Overview

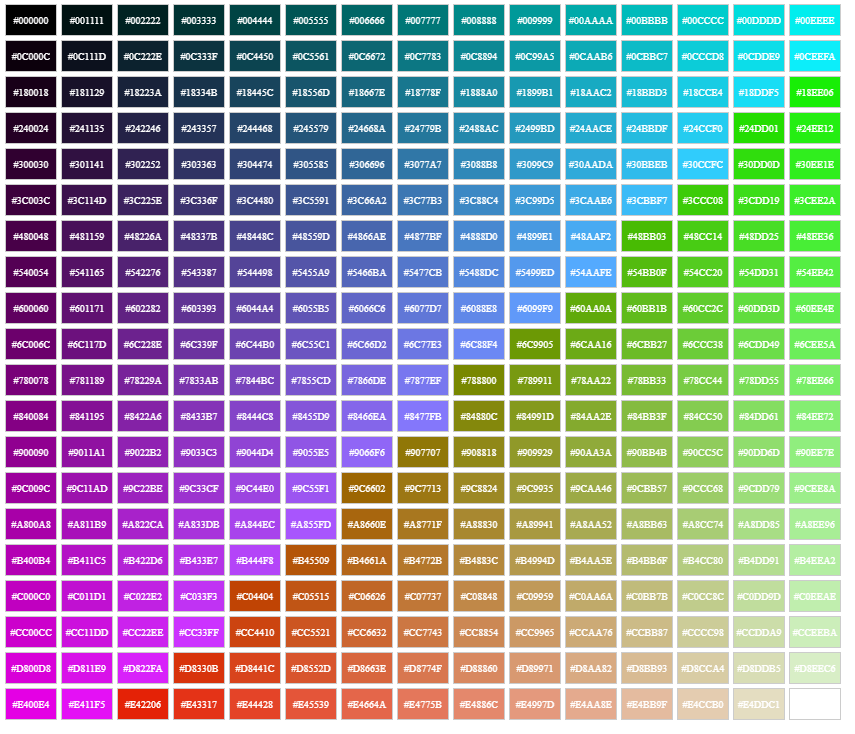

The color chart is a table where each cell represents a unique hex color, generated by varying red, green, and blue components. Rows and columns are iterated using Vue’s v-for directive, and styles are applied dynamically with :style. The hex value is displayed as text within each cell, making it easy to copy or reference.

Key features:

  • Programmatic color generation for a gradient-like effect.
  • Responsive grid layout with CSS styling.
  • Automatic rendering on app creation.

This widget could aid in color scheme planning, accessibility testing, or educational purposes.

Code Breakdown

The template uses nested v-for loops to build the table:

<table>
  <tbody>
    <tr v-for="(row, rowIndex) in colorRows" :key="rowIndex">
      <td v-for="(color, colIndex) in row" :key="colIndex">
        <div class="color-cell" :style="{ backgroundColor: color }">
          {{ color.toUpperCase() }}
        </div>
      </td>
    </tr>
  </tbody>
</table>

Vue’s reactivity updates the view as colorRows changes. The generateColorRange method calculates colors:

generateColorRange() {
  const numRows = 20;
  const numColumns = 15;
  const redStep = Math.floor(255 / numRows);
  const greenStep = Math.floor(255 / numColumns);

  for (let row = 0; row < numRows; row++) {
    const colorRow = [];
    for (let col = 0; col < numColumns; col++) {
      const r = row * redStep;
      const g = col * greenStep;
      const b = (r + g) % 256;
      const hexColor = `#${(r << 16 | g << 8 | b).toString(16).padStart(6, '0')}`;
      colorRow.push(hexColor);
    }
    this.colorRows.push(colorRow);
  }
  this.colorRows[numRows - 1][numColumns - 1] = '#ffffff';
}

This creates a varied palette, with the last cell set to white for contrast.

How Vue Enables Simple Widgets

Vue’s declarative templates and reactive data make it ideal for building lightweight widgets. For similar purposes:

  • Color Pickers: Bind inputs to computed properties for real-time previews.
  • Data Visualizers: Use loops and conditionals for charts or lists.
  • Utility Tools: Like calculators or converters, where user input triggers updates.
  • Interactive Forms: Validate and display results dynamically.

Vue’s component system allows reusing these widgets across projects, with minimal overhead. It’s faster to prototype than vanilla JS, and frameworks like Vue provide structure without bloat for small tools.

Benefits and Use Cases

This chart helps visualize color spaces, useful in design tools or web development. Vue’s simplicity ensures quick implementation, and the reactive model handles data changes seamlessly. For larger apps, integrate with libraries like Vue Color for advanced features. This demo showcases Vue’s power for everyday utility widgets.
